Premade Pouch Packing Machine With Filling Cup

  • Premade Pouch Packing Machine With Filling Cup
  • Premade Pouch Packing Machine With Filling Cup
  • Premade Pouch Packing Machine With Filling Cup

Premade Pouch Packing Machine With Filling Cup

    Min. Order: 1 Set/Sets
    Packaging: Wooden case
    Brand: Durzerd
    Transportation: Ocean
    Place of Origin: China
    Port: SHANGHAI PORT

Product Description

Brief Introduction:

The ZD-300 Single Station pouch packing machine is equipped with filling cup weighing mechanism. It can be used to packing uniform and small granule.

Features:

1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

2. Automatic checking function: no pouch or pouch open error, no fill, no seal.

3. Safety device: machine stop at abnormal air pressure, heater disconnection alarm.

4. The machine is easy to clean, easy maintenance.

5. The part where touch to the material is made of stainless steel.

Application:

This pouch packing machine can be used to different area with optional auxiliary devices .

1. Solid Species: candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food, etc. So this machine can also be customized as salt packing machine and Detergent Powder Packing, etc.

2. Granule Species: grain, refined gourmet powder, granular drug, capsule, seed, chemistry condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, etc.

3. Power Species: milk power, Grape sugar, washing powder. Chemistry condiment, refined sugar, pesticide, fertilizer, etc.

4. Liquid Species& Thick liquid Species: detergent, millet wine, soy sauce, vinegar. Fruit juice, drink, tomato sauce, peanut butter, jaw, chili sauce, bean sauce, etc.

5. Materials that can pack in bag

Detailed description

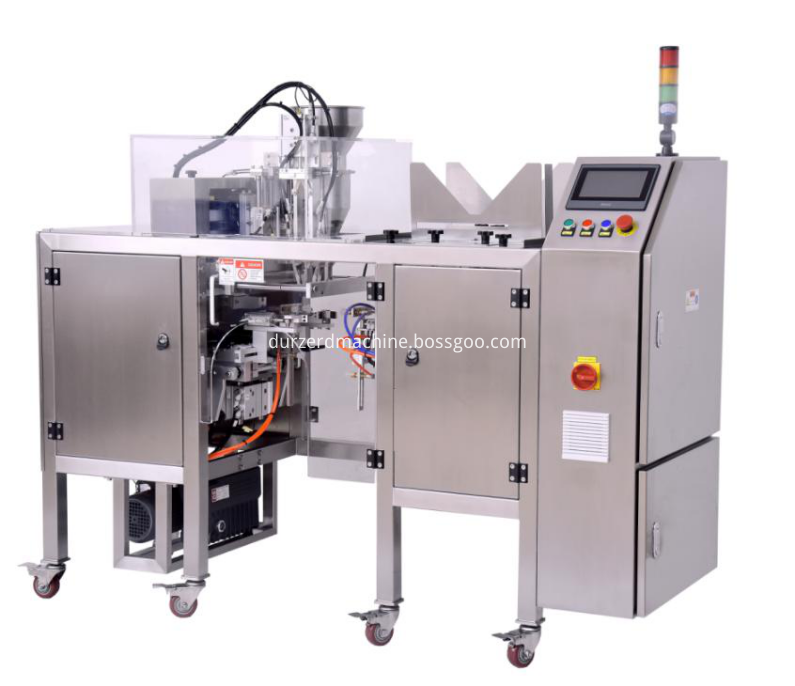

ZD-300 Pouch Packaging Machine

pouch packing machine

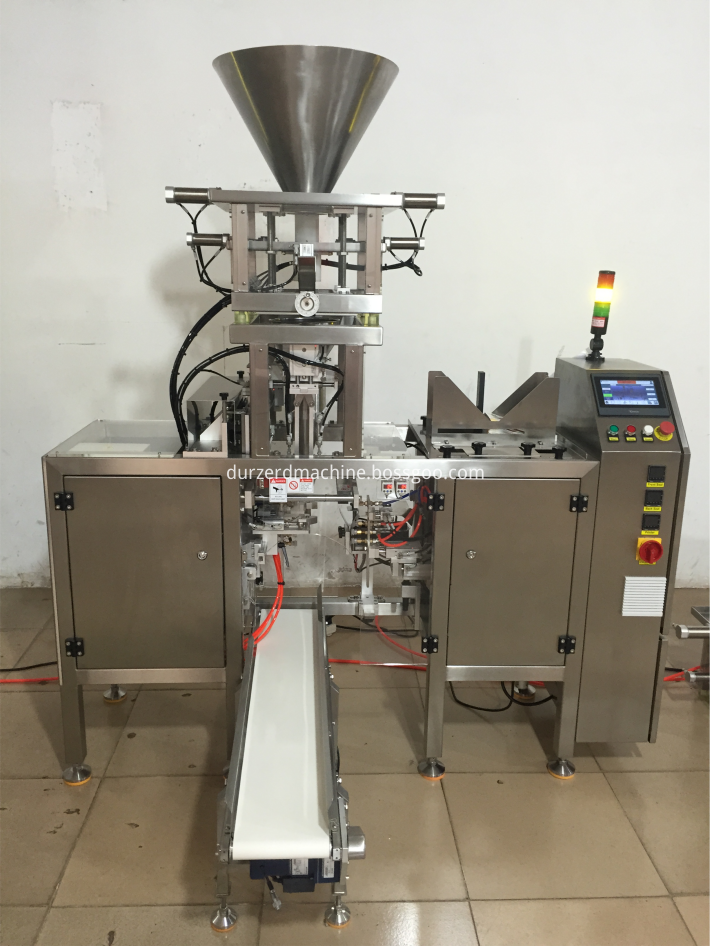

ZD-300 Single Station Mini Doypack Machine +Filling cup+Belt Bucket Elevator

pouch packaging machine

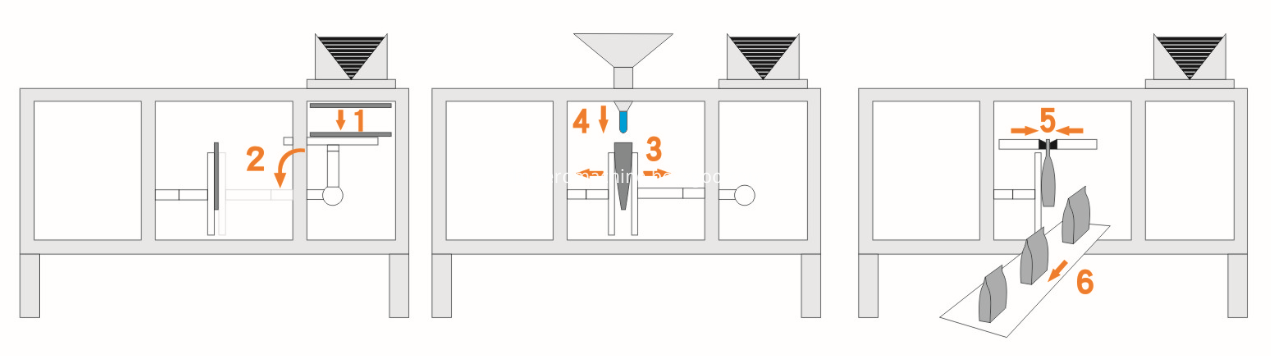

Working process

automatic pouch packing machine

1. Bag picking

2. Bag feeding

3. Bag opening

4. Bag filling

5. Bag sealing

6. Release and Conveyor

Packing bag type

doypack machine

Technical Parameters

Model

ZD-300

Bag Material:

Multilayer Composite Premade Bag
e.g.: PET/PE

Bag Type:

3 Side Seal Bag,
Stand-up Bag

Upgradable Bag Type:

Gusset Bag, Zipper Bag, Flat Bottom Pouch
Need additional purchase of functional device

Size Range:

80mm≤W≤300mm
100mm≤L≤300mm

Speed:

0~15bags/min

Sealing Type:

Straight grain, pitch is 1mm (Optional reticulate)

Sealing Width:

10mm5--20mm can be customized

Voltage:

220V, Single-phase,
50/60HZ, 1.2KW

Air Compressor Pressure:

0.65Mpa

Air Consumption:

0.3m³/min
Standard machine, no additional function

Body Dimension:

1770*600*1230mm

Packing Dimension:

1860*710*1550mm
Export non-fumigation wooden case
